OUR Green-tec PRODUCTS

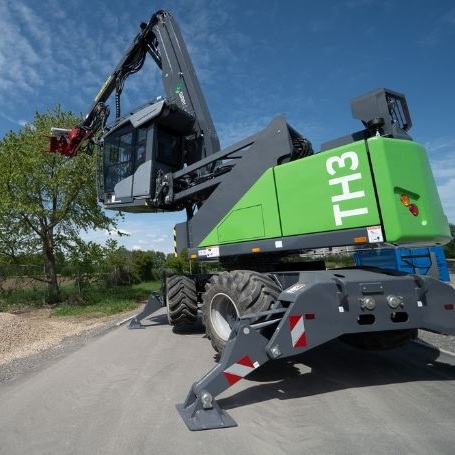

TH3
Green-Tec’s TH3 Tree Care Handler incorporates a distinct hydraulic circuit, enabling the use of various attachments for tasks such as tree felling, trimming, mulching, and grab sawing.
Emphasising safety and efficiency, it features a uniquely designed tiltable and raisable cab for enhanced manoeuvrability. Its reduced slewing radius and compact design allow operation on busy roads, in congested areas, and within confined workspaces.
Equipped with forestry tyres, all-wheel steering and drive, a durable undercarriage, and stability even at maximum reach, it excels in navigating challenging terrain effectively.
Specs
Turning Radius: 14 ft 90 in (4 m 50 cm)
Preparation: Grapple saw, mulcher and stump grinder
Full tree care protection: Glass & guarding
Measurements
Machine Height: 11 ft 30 in (3 m 43 cm)
Machine Width: 8 ft 11 in (2 m 72 cm)
Reach: 49 ft (15 m)
Operating Weight: 48,500 lbs (21,900 kg)
Machine Length: 31 ft 3 in (9 m 52 cm)
Power Unit
Engine: Deutz TCD 3.6 T4F/STG V
Power: 127 hp (95 kW)
Drive: Hydrostatic Travel Drive

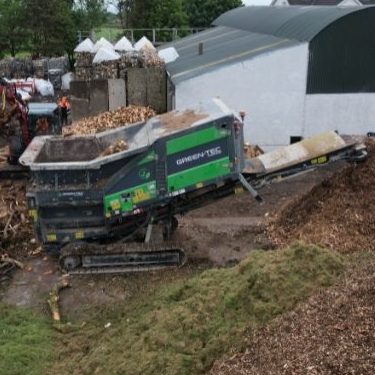

LS2
Green-Tec’s LS2 Shredder features a compact design for easy manoeuvrability. The twin shaft, slow-speed shredder offers remarkable versatility, suitable for diverse applications such as wood and green waste processing.
Users can efficiently remove the shafts and comb, with a variety of shaft types at their disposal. The settings on the aggressive high-torque chamber are customisable, depending on the specific feed material.
Shredding Unit
Shaft Movement: Independent
Shaft Size: 4 ft 11 in (1 m 50 cm)
Torque per Shaft: 59,000 Ft lb (80,000 Nm)
Interchangeable shaft cassettes: C&D & waste
Power Unit
Engine Option: Volvo TAD583VE 238 hp (175 kW) Stage V / Tier 4 Final
Engine Option: CAT C4.4 188 hp (140 kW) Stage V / Tier 4 Final
Engine Option: CAT C4.4 173 hp (129 kW) Stage 3A
Measurements
Operating Weight: 36,370 lbs (16,500 kg)
Transport Height: 10 ft (3 m 5 cm)
Machine Width: 8 ft 20 in (2 m 50 cm)
Machine Length: 27 ft 80 in (8 m 40 cm)

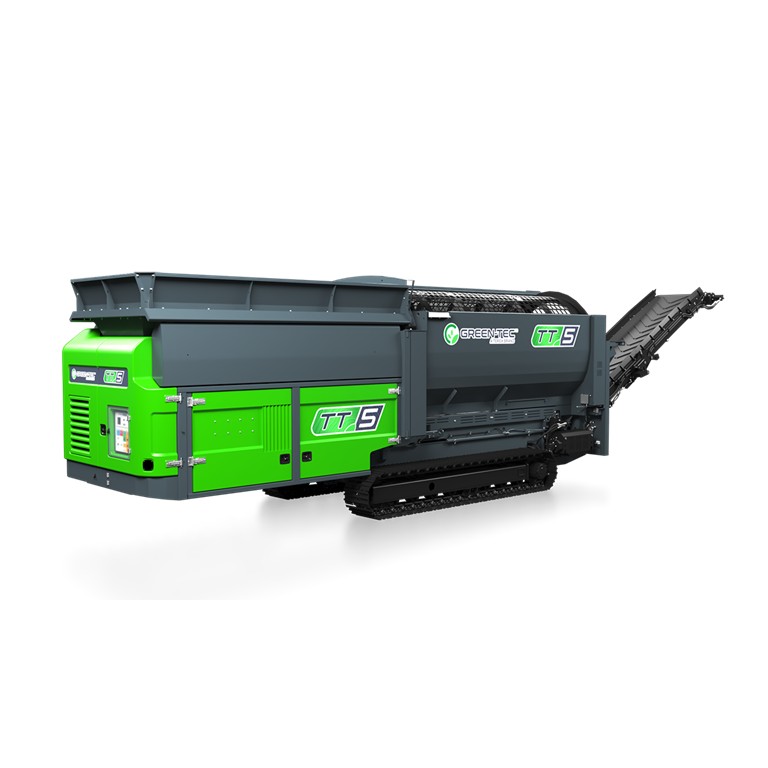

TT5
Green-Tec’s TT5 Trommel presents an optimal screening solution for biomass and compost, offering flexibility and efficient production rates. With its adaptable design featuring a spiral pattern and horizontal drum, this trommel excels in various market conditions. A standout feature is its ease of maintenance, facilitated by double-sided access, enabling drum changes with minimal constraints. Also available as a wheeled option.
Drum
Screening Area: 23 m²
Drum Size: ø5’ 1” x 15’ 5” (ø1.8m x 4.7m)
Feeder Capacity: 5 m³
Chain & Drive Sprocket: Single welded
Transport Dimensions (Tracked)
Width (tracked) 9 ft 50 in (2 m 90 cm)
Height (tracked): 11 ft 20 in (3 m 40 cm)
Weight (tracked): 40,000 lbs (18,000 kgs)
Length (tracked): 32 ft 20 in (9 m 80 cm)
Power Unit & Control
Engine Option: CAT C2.2 74 hp (55 kW) Stage V / Tier 4 Final
Drum & Feeder Drives: Hydrostatic
Maintenance: Swing out engine
Engine Option: CAT C4.4 83 hp (62 kW) Stage IIIA
Transport Dimensions (Wheeled)
Height (wheeled): 13 ft 20 in (4 m)
Weight (wheeled): 37,480 lbs (17,200 kgs)
Width (wheeled): 8 ft 40 in (2 m 55 cm)
Length (wheeled): 37 ft 10 in (11 m 30 cm)

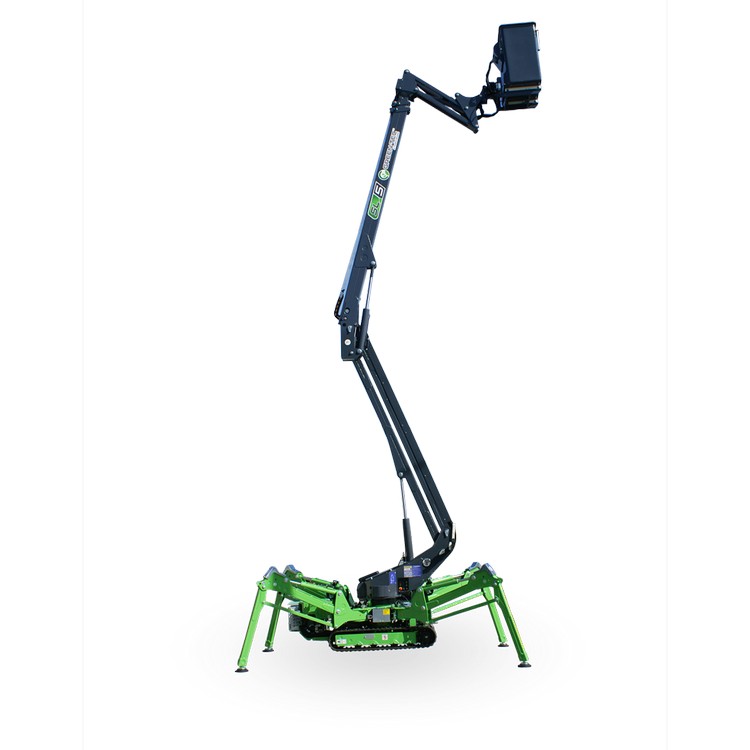

SL5
The SL5 Green-Tec Spider Lift provides access to restrictive spaces, enabling safe work at height for operators using handheld tree care equipment. Featuring rubber tracks and stabilisers with adjustable configurations and automatic levelling, the SL5 can be safely and easily deployed across a range of conditions.
Power Unit
Power: 16.8 hp (12.5 kW) Stage V / Tier 4 Final
Engine: Kubota Diesel
Dimensions
Transport Length: 17 ft (5 m 20 cm)
Weight (gross): 6,283 lbs (2,850 kgs)
Transport Width: 2′ 8″ / 3′ 7″ (0.83 / 1.1 m)
Transport Height: 6 ft 50 in (1 m 99 cm)
Capacity
Max Working Height: 68 ft 10 in (21 m)
Turnable basket: 160 degrees
Articulated Jib: 90 degrees
Max Load: 507 lbs (230 kgs)
Max Working Outreach: 32 ft 50 in (9 m 90 cm)

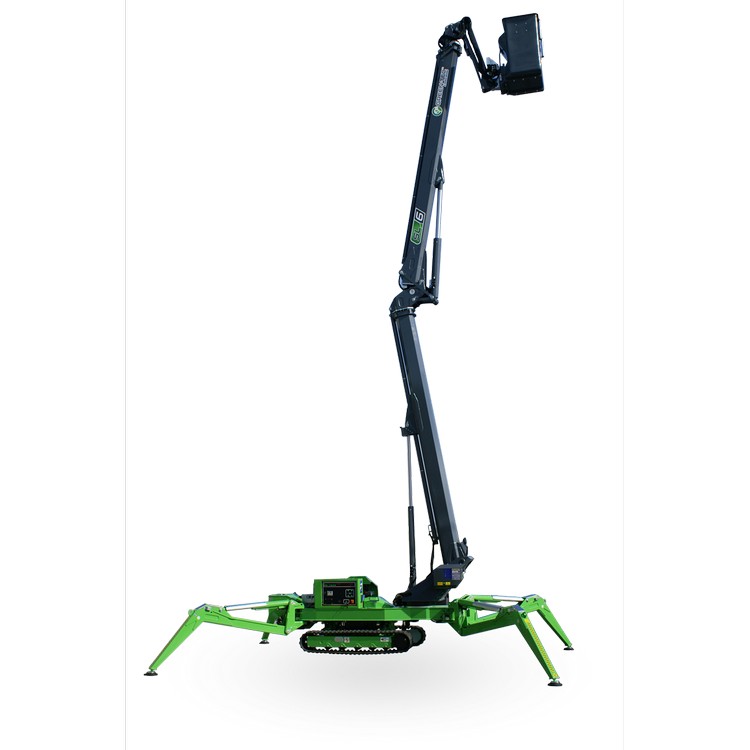

SL6
The SL6 Green-Tec Spider Lift provides access to confined and restrictive spaces, ensuring safe working at height for an operator using handheld tree care equipment. It features independent telescopic rubber tracks, stabilisers with adjustable configurations, and automatic levelling. This Spider Lift can be deployed safely and with ease across a range of conditions.
Power Unit
Engine: Kubota Diesel
Power: 24.8 hp (18.5 kW)
Dimensions
Machine Width: 4 ft 30 in (1 m 29 cm)
Transport Length: 22 ft (6 m 70 cm)
Operating Weight: 8,380 lbs (3,800 kgs)
Transport Height: 6 ft 70 in (1 m 99 cm)
Capacity
Turnable basket: 180 degrees
Articulated Jib: 140 degrees
Max Load: 507 lbs (230 kgs)
Max Height: 85 ft 40 in (26 m)
Max Reach: 47 ft 70 in (14 m 50 cm)

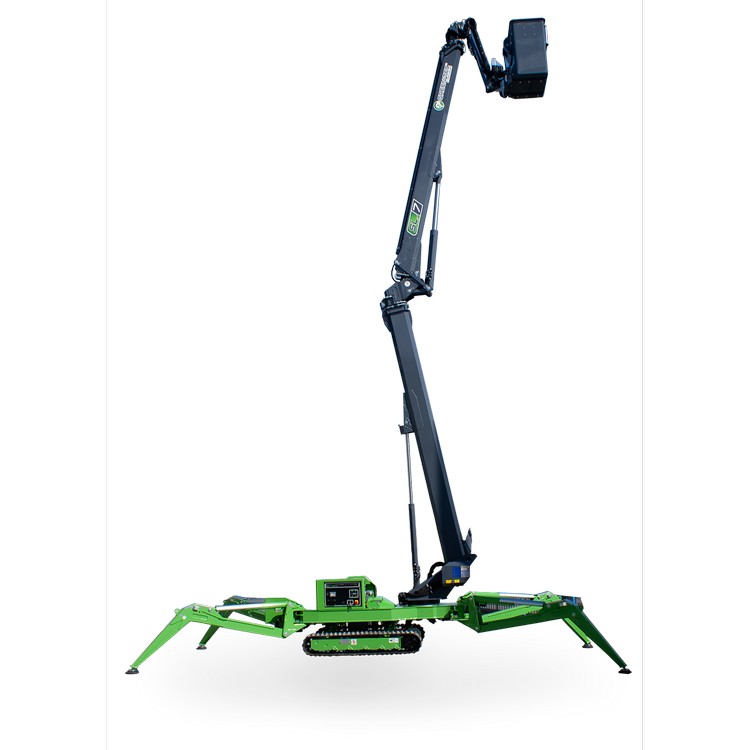

SL7
The SL7 Green-Tec Spider Lift provides access to confined and restrictive spaces, allowing operators to work safely at height while using handheld tree care equipment. It features independent telescopic rubber tracks and stabilisers with adjustable configurations and automatic levelling, enabling safe and effortless deployment in a variety of conditions.
Power Unit
Power: 24.8 hp (18.5 kW)
Power Unit: Kubota Diesel
Dimensions
Machine Width: 4 ft 30 in (1 m 29 cm)
Operating Weight: 9,040 lbs (4,100 kgs)
Transport Length: 22 ft 40 in (6 m 80 cm)
Transport Height: 6 ft 70 in (1 m 99 cm)
Capacity
Max Height: 99 ft 10 in (30 m 20 cm)
Max Reach: 47 ft 70 in (14 m 50 cm)
Max Load: 507 lbs (230 kgs)
Turnable basket: 180 degrees
Articulated Jib: 140 degrees

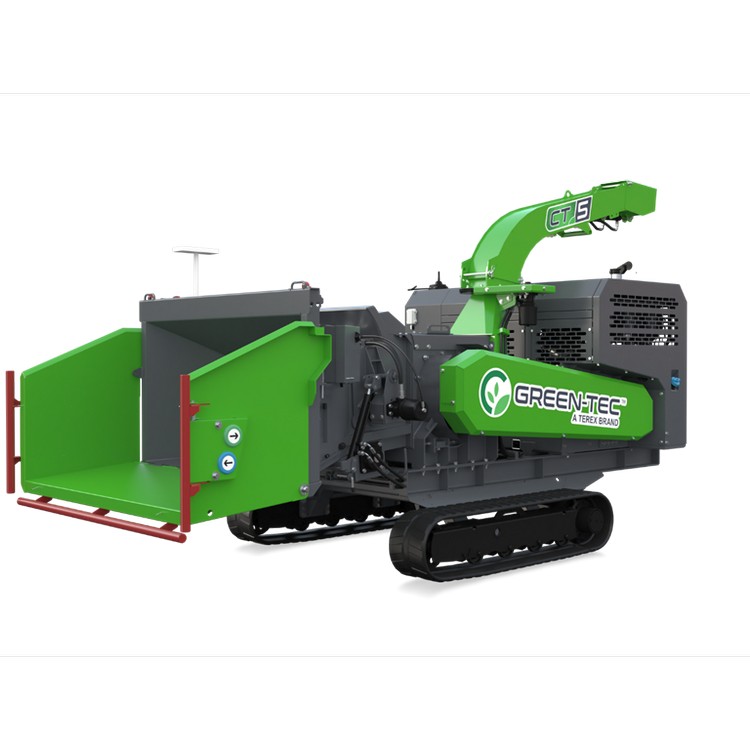

CT5
Measurements
Tracked Operating Weight: 6283 – 7275lbs (2850 – 3300kg)
Machine Length: 12 ft 80 in (3 m 85 cm)
Machine Width: 6 ft 50 in (1 m 95 cm)
Wheeled Operating Weight: 6217 – 7319lbs (2820 – 3320kg)
Transport Height: 8 ft 70 in (2 m 63 cm)
Specs
Chipping Rotor: 2 Pocket, Staggered Knife
Chipping Capacity: ø 13” ( ø 330 mm)
Clutch: Manual or hydraulic
Drum Size: 24″ x 18″ ( 610mm x 457mm)
Feed Rollers: Top & Bottom
Power
Power Unit: C3.6 Caterpillar, 134hp (100kw), Stage V / Tier 4 Final
Power Unit: C2.2 Caterpillar, 74hp (55kw), Stage V / Tier 4 Final

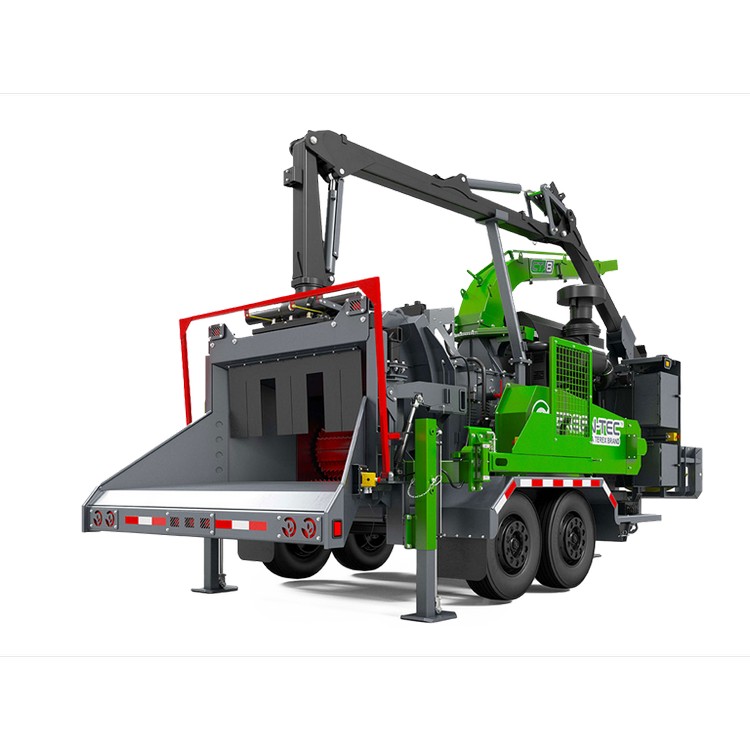

CT8
Measurements
Transport Height: 11 ft 10 in (3 m 62 cm)
Operating Weight: 24,000 lbs (10,800 kg)
Machine Width: 8 ft 60 in (2 m 60 cm)
Machine Length: 21 ft 20 in (6 m 46 cm)
Specs
Discharge Height: 11 ft 20 in (3 m 41 cm)
Clutch: Twin disc manual
Chipping Capacity: ø21″ (ø530 mm)
Roller: Top feed
Chipping Rotor: 2 pocket, staggered knife
Drum Size: ø36″ x 36″ (ø0.914 m x 0.914 m)
Power
Power Unit: CAT C7.1b, 302 hp (225 kW) Stage V / Tier 4 Final
Power Unit: CAT C9.3b, 375 hp (280 kW) Stage V / Tier 4 Final

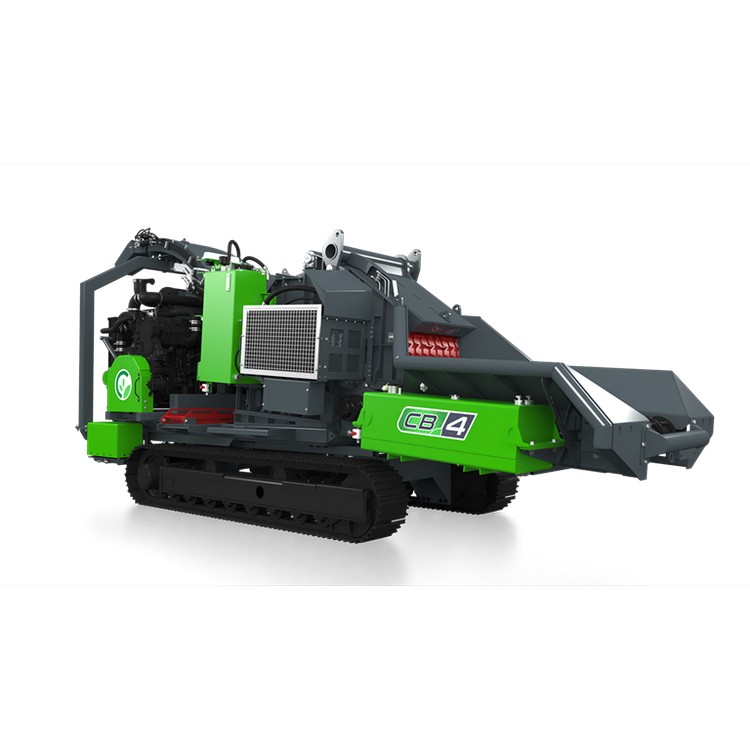

CB4
The CB4 Biomass and Whole Tree Chipper is available in truck-mounted or tracked versions. Designed for ease of maintenance and low total cost of ownership, it has a range of engine choices and can generate micro-chips or sizable fuel chips, which are particularly advantageous for larger-scale operations. The CB4 Biomass Chipper provides numerous infeed and chute options, such as apron belts, drag chains, sloped, or flat infeed variations, along with top load, end load, and hydraulically adjusted chute selections.
Specs
Chipping Capacity: ø24″ (ø610 mm)
Rotor: 3 staggered knives
Microchip 4 pocket: 12 knives
Standard 2 Pocket: 6 knives
Discharge Height: 11 ft 11 in (3 m 60 cm)
Drum Size: ø48″ x 36″ (ø1.22 m x 0.914 m)
Measurements
Machine Width: 7 ft 11 in (2 m 41 cm)
Machine Height: 11 ft 10 in (3 m 60 cm)
Operating Weight: 45,000 lbs (20,400 kg)
Machine Length: 26 ft 90 in (8 m 16 cm)
Power
Engine Option: Scania DC-16, 765 hp (550 kW) Stage V / Tier 4 Final
Engine Option: CAT C18, 765 hp (550 kW) Stage 2 / Tier 2
Engine Option: CAT C18, 765 hp (550 kW) Stage V / Tier 4 Final
Engine Option: CAT C15, 550 hp (410 kW) Stage V / Tier 4 Final
Engine Option: Scania DC-13, 550 hp (410 kW) Stage V / Tier 4 Final

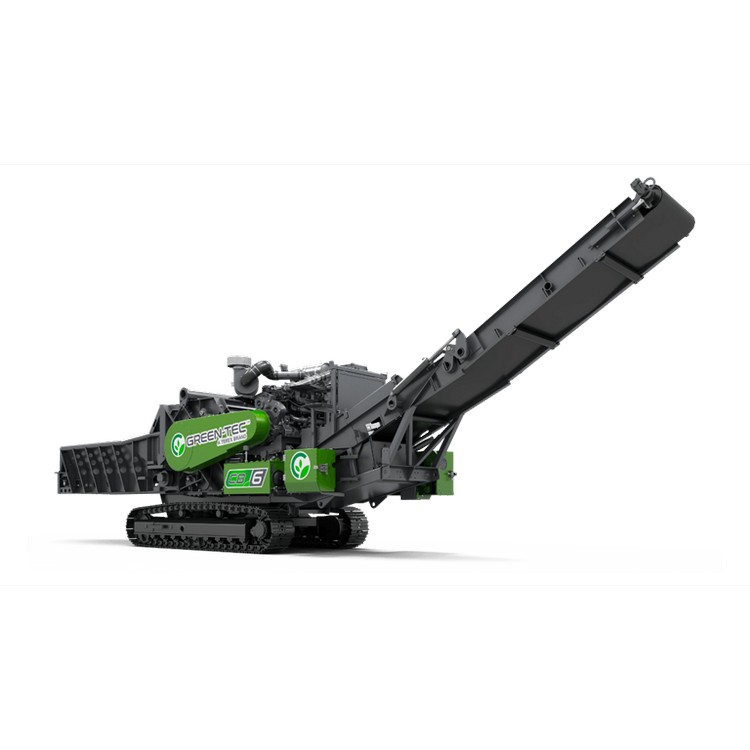

CB6
Green-Tec’s only chipper that can be converted into a grinder. Four different field swapable rotors can accommodate changing materials and processing demands. You can go from making high quality mulch from trees and stumps, to chipping stem wood into chips in custom sizes. Its also possible to grind highly contaminated C&D or railroad ties. With the push of a button, the unique design hog box provides service-friendly, full access for easy daily maintenance & screen removal. This unbelievable versatility guarantees that you will always have the right machine for the job.
Measurements
Machine Width(CB6): 8 ft 40 in (2 m 54 cm)
Machine Length(CB6): 12 ft 10 in (39 m 11 cm)
Machine Height(CB6): 12 ft 30 in (3 m 60 cm)
Operating Weight(CB6): 76,000 lbs (31,750 kg)

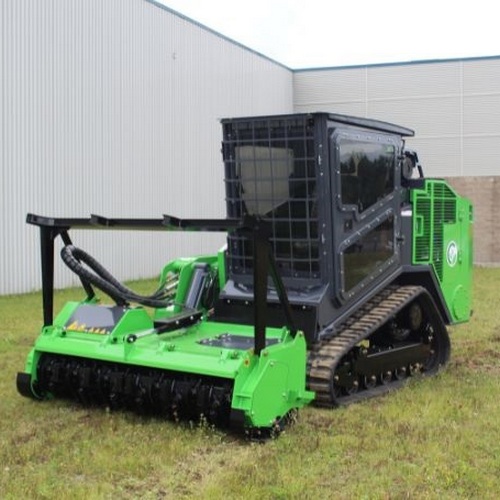

MT2
Green-Tec’s MT2 Tracked Mulcher provides modern cab comforts and is well suited for land and vegetation management. It offers a variety of mulching head options and delivers exceptional hydraulic performance within its class. The tracked mulcher features superior cooling capacity and electronic monitoring to maintain optimal power efficiency. Additionally, the torflex-style suspension undercarriage ensures excellent manoeuvrability over challenging terrain.
Attachments
Preparation: Quick Attach Plate
Power: 149 hp (110 kW)
Hydraulic: 44 gpm @ 5800 psi (166 lpm @ 400 Bar)
Power Unit
Drive: Hydrostatic
Fuel Tank: 42 gal (160 l)
Power: 155 hp (115 kW)
Engine: Cummins B4.5 T4F/STG V
Dimensions
Machine Length: 11 ft 10 in (3 m 40 cm)
Machine Width: 6 ft 6.75 in (2 m)
Machine Height: 7 ft 11 in (2 m 40 cm)
Operating Weight:: 14,860 lbs (6,740 kg)
What is Green-Tec?
Safer, Smarter Solutions
Green-Tec design and manufacture vegetation and tree care solutions. With a robust range of chippers, trommels, shredders, dedicated tree care handlers, tracked mulchers and attachments, Green-Tec are well equipped to service this industry.
