Our Products - Shearex VL

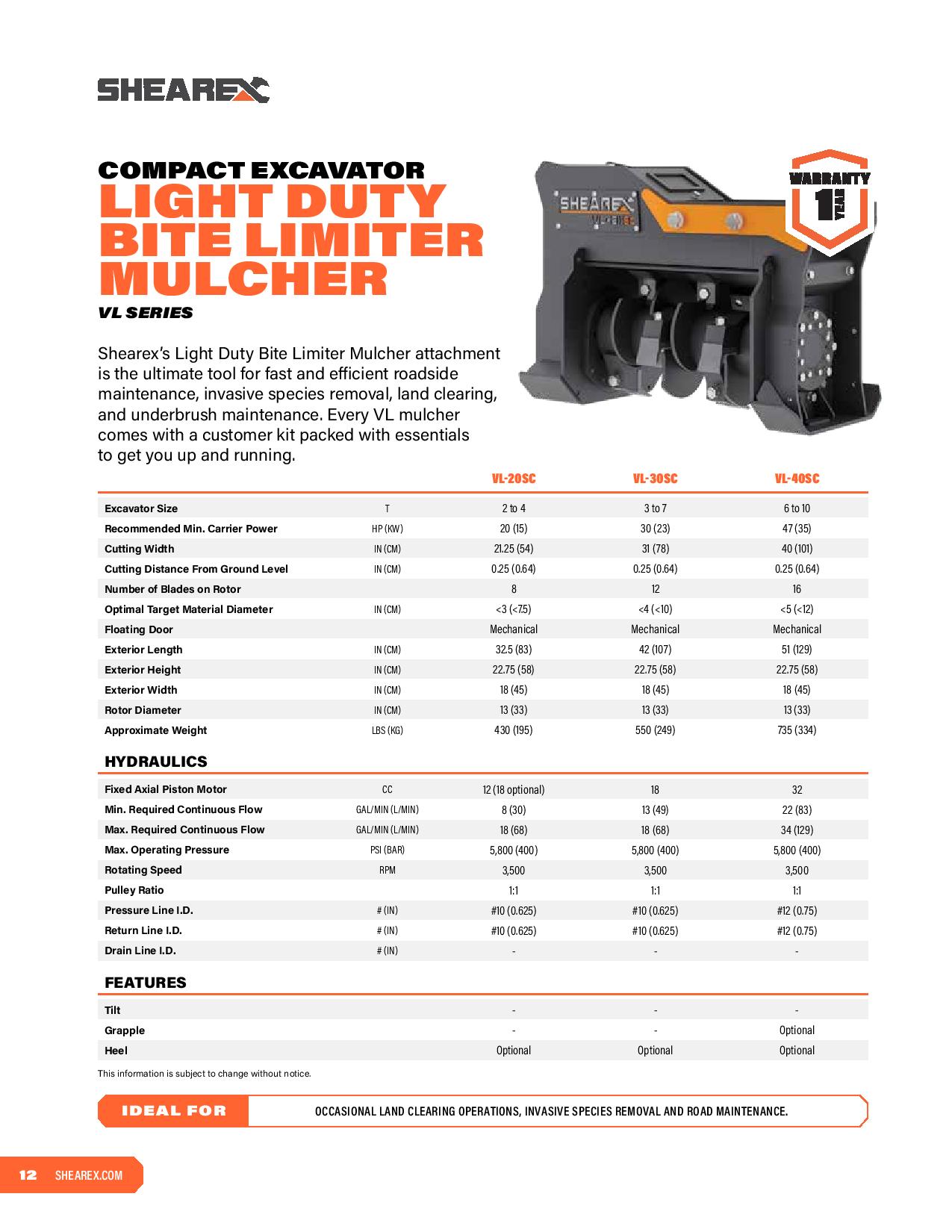

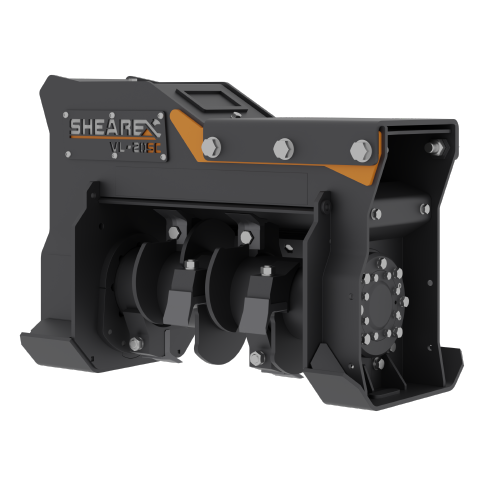

Light Duty Excavator Mulcher

Shearex’s Mini Bite Limiter Mulcher attachment is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance. No case drain is require for this light duty mulcher. With years of experience, Shearex offers one of the most powerful land-clearing attachments on the market, featuring a quick and easy coupling system.

Every VL mulcher comes with a complimentary kit packed with essentials to get you up and running. This customer kit contains eight blades (bolts included), one tube of grease, a Shearex cap, the user manual, and a sharpening guide.

  • No case drain require.
  • Poly-Chain®️ Carbon transmission belt.
  • Internal shell/ wear plate made of Hardox®️ 500 for ultimate wear resistance.
  • Durable, drainless piston motor built to withstand maximum pressure up to 5,800 PSI and return line pressure up to 360 PSI. Enjoy enhanced durability and speed while minimizing internal wear.
  • Extremely durable oversized axles and bearings.
  • Bolted counter blade for easy replacement and added durability.
  • Comes with a complimentary kit, which includes a set of spare blades, tube of grease, a Shearex cap and a sharpening guide.

VL-20SC

Excavator size

2 to 4

Recommended min. carrier power

15 (20) KW (HP)

Cutting width

54 (21.25) CM (IN)

Cutting distance from ground level

0.64 (0.25) cm (in)

Number of blades on rotor

8

Optimal target material diameter

<7.5 (<3) cm (in)

Exterior length

83 (32.5) cm (in)

Exterior height

58 (22.75) cm (in)

Exterior width

45 (18) cm (in)

Rotor diameter

33 (13) cm (in)

Approximate weight

195 (430) KG (LBS)

Fixe Axial Piston Motor

12 (18 optional) CC

Min. required continous flow

68 (18) l/min (gal/min)

Max. operating pressure

400 (5,800) bar (psi)

Rotating speed

3,500 rpm

Pressure line I.D.

#10 (0.625) (in)

Return line I.D.

#10 (0.625) (in)

Grapple

N/A

Heel

Optional

VL-30SC

Excavator size

3 to 7

Recommended min. carrier power

23 (30) KW (HP)

Cutting width

78 (31) CM (IN)

Cutting distance from ground level

0.64 (0.25) cm (in)

Number of blades on rotor

12

Optimal target material diameter

<10 (<4) cm (in)

Exterior length

107 (42) cm (in)

Exterior height

58 (22.75) cm (in)

Exterior width

45 (18) cm (in)

Rotor diameter

33 (13) cm (in)

Approximate weight

250 (550) KG (LBS)

Fixe Axial Piston Motor

18 cc

Min. required continous flow

68 (18) l/min (gal/min)

Max. operating pressure

400 (5,800) bar (psi)

Rotating speed

3,500 rpm

Pressure line I.D.

#10 (0.625) (in)

Return line I.D.

#10 (0.625) (in)

Grapple

N/A

Heel

Optional

VL-40SC

Excavator size

6 to 10

Recommended min. carrier power

35 (47) KW (HP)

Cutting width

101 (40) CM (IN)

Cutting distance from ground level

0.64 (0.25) cm (in)

Number of blades on rotor

16

Optimal target material diameter

<12 (<5) cm (in)

Exterior length

129 (51) cm (in)

Exterior height

58 (22.75) cm (in)

Exterior width

45 (18) cm (in)

Rotor diameter

33 (13) cm (in)

Approximate weight

334 (735) KG(LBS)

Fixe Axial Piston Motor

32 cc

Min. required continous flow

83 (22) l/min (gal/min)

Max. operating pressure

400 (5,800) bar (psi)

Rotating speed

3,500 rpm

Pressure line I.D.

#12 (0.75) (in)

Return line I.D.

#12 (0.75) (in)

Grapple

Optional

Heel

Optional

Drain line I.D.

#12 (0.75) (in)
